COWON

ALL-ROUND PLAYER

The Beauty of Versatile PLENUE

PLENUE R

24bit/192kHz High Definition Sound   I    Highest Performance PCM5242 DAC   I    SoundPlus High Performance Amplifier   I    High Quality Balanced Out
SNR 123dB, THD+N 0.001%   I    High Precision TCXO   I    High Quality Bluetooth aptX   I    Premium Sound DAC Filter   I    JetEffect 7 & BBE+, 66 Presets
DXD / DSD(DFF, DSF) / FLAC / WAV / AIFF / ALAC / APE / MP3 / WMA / OGG / WV / TTA / DCF   I    Music Playback 17 hours   I    ARM Cortex Dual-Core
AMOLED 3.7 inch Display   I    Sound Source LED Indicator   I    Premium High Strength Metal Body   I    Solid & Void Design
High Speed 128GB Internal Memory   I    microSD Card Slot   I    Optical Output

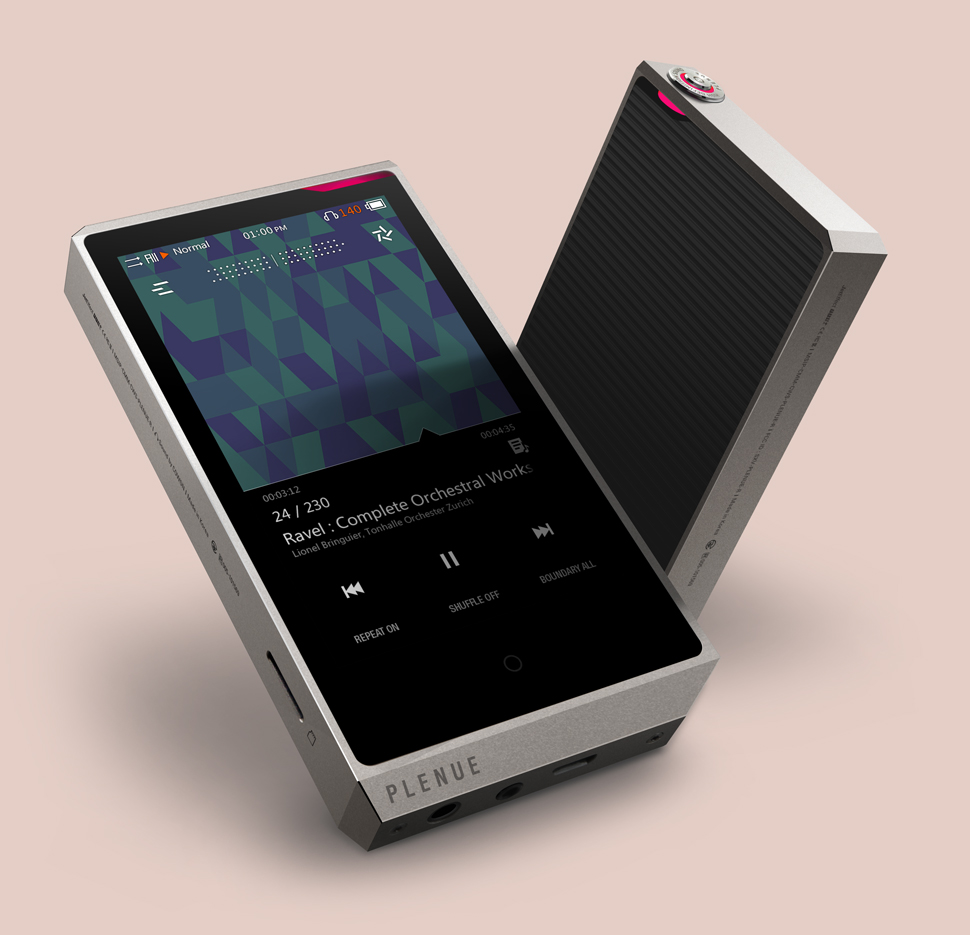

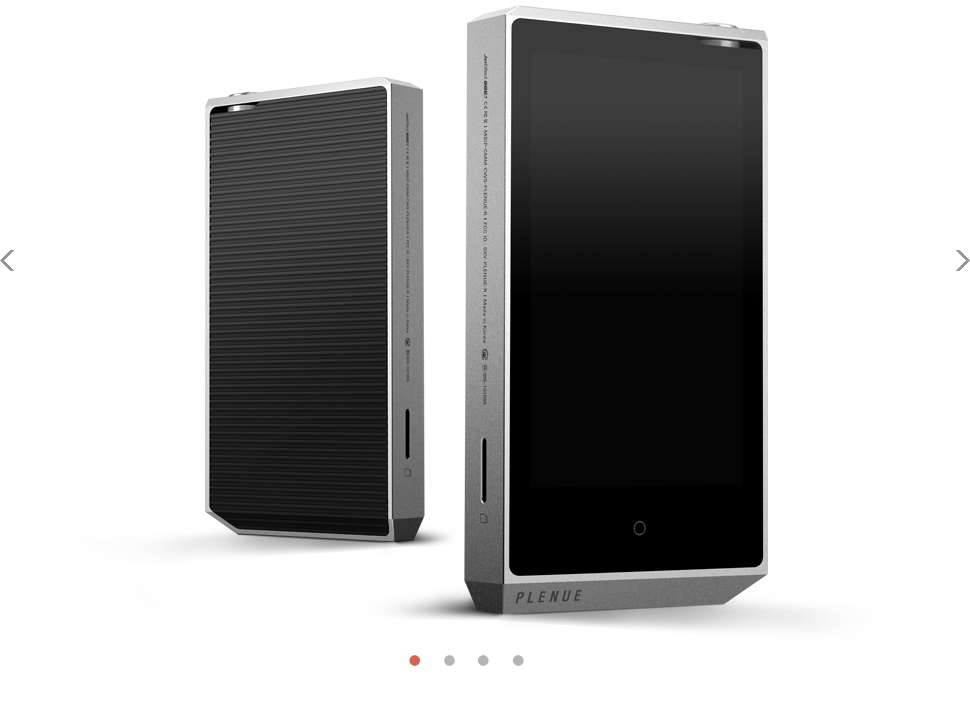

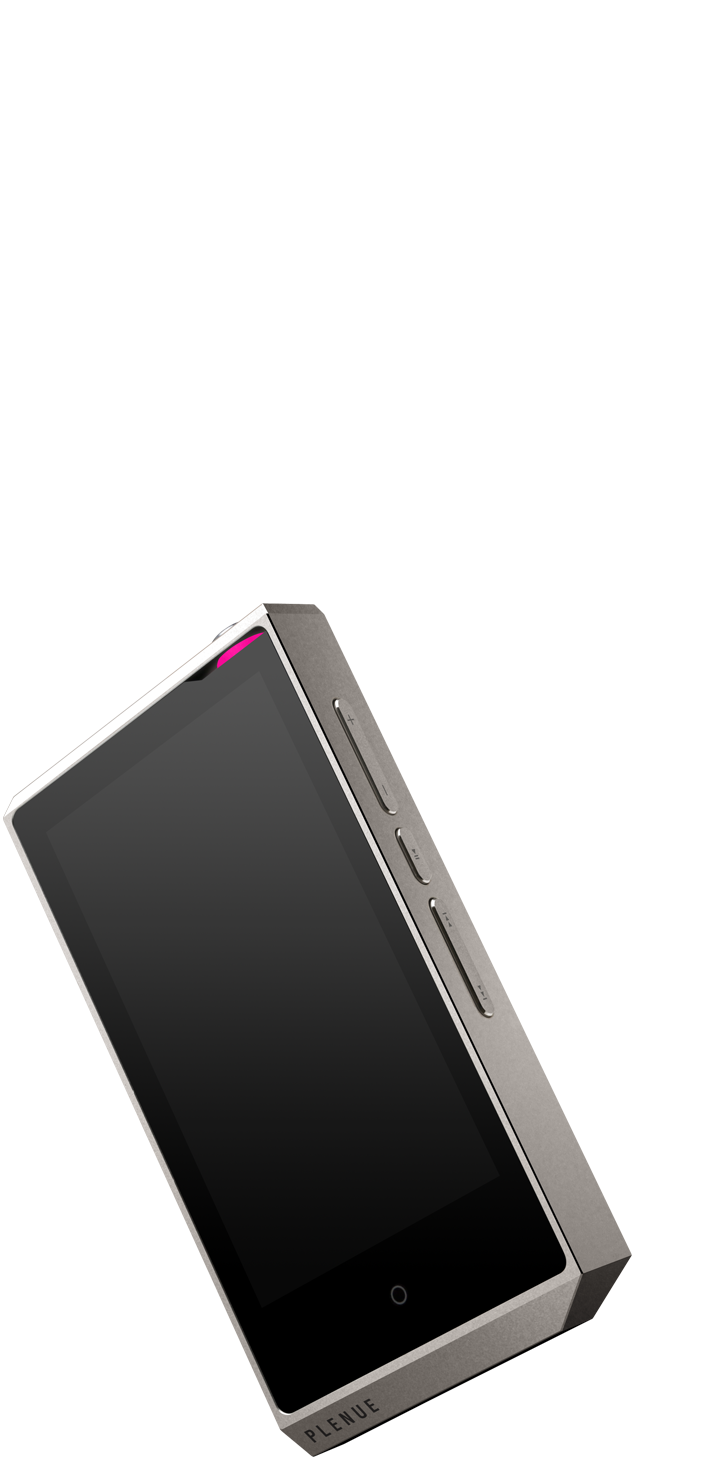

ALL-ROUND PLAYER PLENUE R
The Beauty of Versatile PLENUE

The PLENUE R is an all-round player with versatility that excels in a variety of areas,
featuring super-HD sound, aptX Bluetooth codec support, 2.5 mm balanced output,
17 hours of continuous playback, and LEDs that change depending on the sound source.
Feel the difference in perfectly-reproduced HD with the PLENUE R,
the next evolution in the PLENUE line.

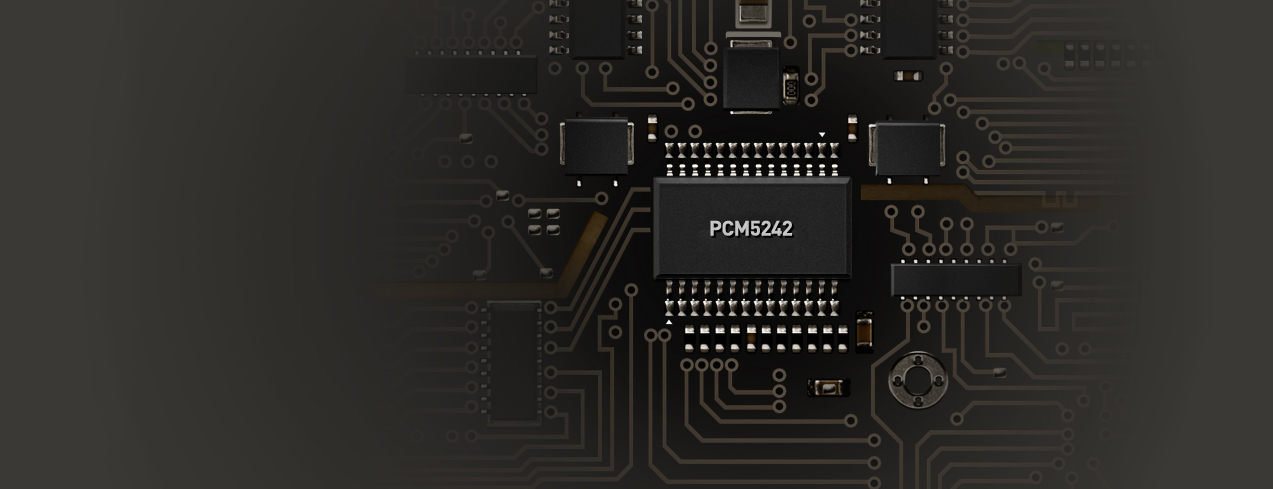

The World's Finest 24bit/192kHz Stereo DAC,
PCM5242 DAC

The PLENUE R is equipped with the PCM5242 digital-to-analog converter (DAC), designed for high-end hi-fi audio systems, to deliver superb quality sound. It features Texas Instruments' latest hyper-advanced current-segment architecture and superior DirectPath conversion performance to faithfully reproduce not only 24bit, 192 kHz PCM sources, but high-definition resolution DSD and DXD sources as well.

High-Performance SoundPlus Amplifier for Sound Perfection

One requirement for achieving perfect sound is a high-performance amplifier that is optimally compatible with high-end receivers. Texas Instruments' high-performance SoundPlus amplifier delivers high voltage while maintaining the highest level of linearity—a significant step up in audio technologies from existing versions of amplifiers. The amplifier generates powerful performance capable of driving high-end headphones with high impedance without the need for a separate headphone amplifier. Now, sophisticated and precise sound tuning makes it possible to clearly express any frequency range in combination with a variety of receivers.

High Quality Clear Sound
Balanced Output

Balanced output effectively blocks noise generated when signals are transmitted by adding 'out of phase' signals to unbalanced output signals. Since it transmits two types of signals simultaneously, the PLENUE R strengthens the output signal for clearer and crisper reproduction of original sound. The PLENUE R uses balanced output to reproduce crisp original sounds.

High Quality Bluetooth Audio Codec
Qualcomm® aptX™ audio

The PLENUE R supports aptX, a high-quality audio codec that provides higher compression efficiency and superior sound quality compared to conventional SBC codec Bluetooth transmission. You can now enjoy PLENUE R through any earphones, headphones, or speakers that support Bluetooth, and the application of
JetEffect 7's powerful acoustic field via Bluetooth output means
you can savor rich sound quality with greater variety.

Beyond the Limits of Hearing

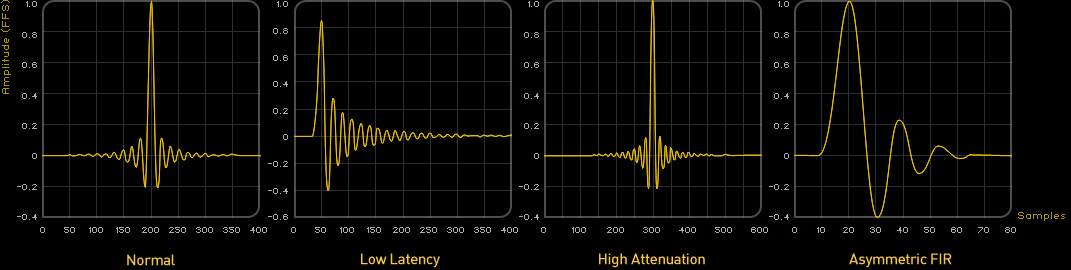

Premium Sound DAC Filter

Four digital filters (Normal, Low Latency, High Attenuation, Asymmetric FIR) are provided to enable fine micro-tuning and allow implementation of transient signal responses in the time domain. This empowers listeners to tune sounds previously beyond the limits of hearing even with identical sound sources.

Long Playback Hours
Music Playback 17 hours

Thanks to a low-power circuit design and high-efficiency battery, the PLENUE R delivers 17 hours of continuous MP3 (128 kbps) playback and up to 16 hours of HD FLAC (24bit, 96 kHz) playback.

Unparalleled Acoustic Performance

The PLENUE R's high-definition sound is realized through 123 dB of SNR, 0.001% of THD+N, and -134 dB of crosstalk, essential figures that represent the performance of acoustic equipment.

123dB

SNR (Signal to Noise Ratio)

SNR, or signal-to-noise ratio, is a measurement for indicating how much noise is mixed into an audio signal. A high SNR value means a clearer, noise-free original studio sound.

-134dB

Stereo Crosstalk

Stereo crosstalk indicates the degree of interference between left and right channels caused by electromagnetic induction. A low stereo crosstalk value means less inter-channel interference for a clear separation of left and right channels.

0.001%

THD+N (Total Harmonic Distortion+Noise)

THD+N is an indicator of signal distortion caused by various factors, including harmonics. A small THD+N value means a reduced occurrence of harmonic distortion on an audio device.

Jitter

Jitter is a measure of clock signal fluctuation due to temperature or other electrical effects. Lower the Jitter values, less the influence to the clock signal via internal or external environments.

High SNR View more

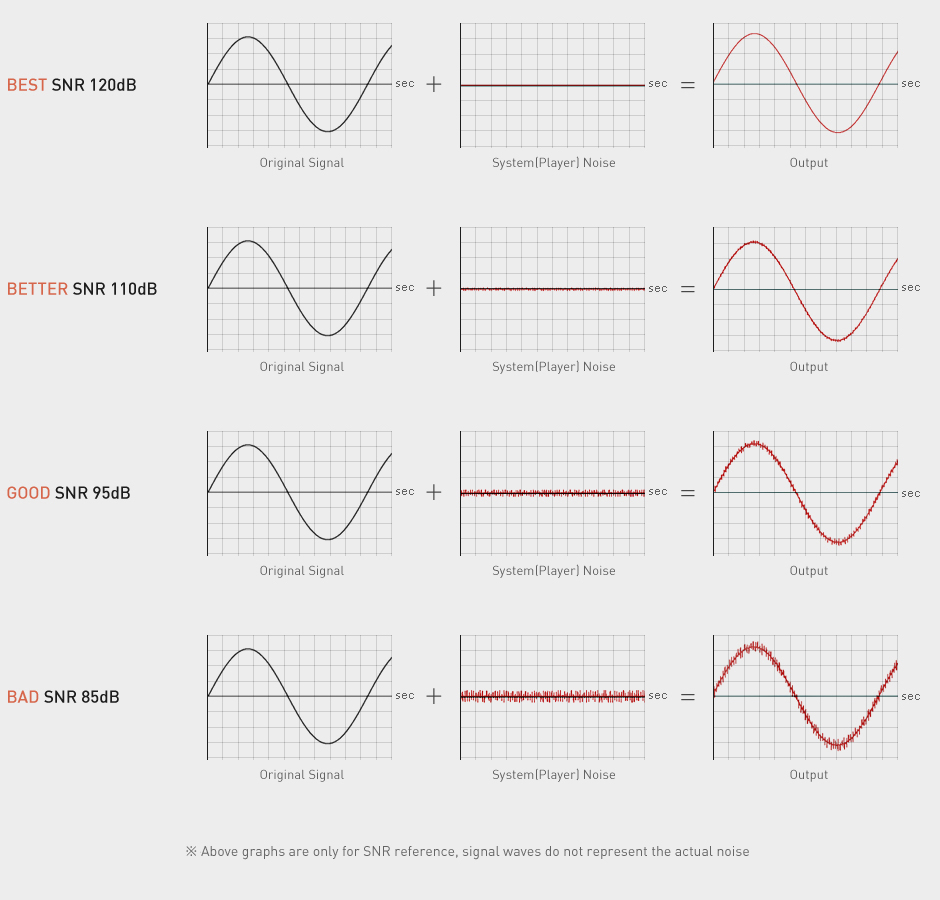

High SNR, Indispensable Element for HD Sound

When we hear the music, acoustic signal picks up unavoidable noises as the signal processes to the output, the process leads to distortion in the original signal. This phenomenon can be expressed as a numerical value of SNR (Signal to Noise Ratio). SNR compares the level of a desired signal to the level of background noise. It is one of key criteria that can be measured to compare acoustic performances between one to another. If there is a difference of 6dB between two devices, there is a difference of 1 quantization bit in digital signal. For example, the device with 113dB has a loss of more than 1 quantization bit in digital signal, which leads to twice the amplitude resolution difference comparing to PLENUE R with 123dB. Therefore, to fully enjoy the HD Sound, a device must have excellent SNR figures. Having a poor SNR or THD means the device performs imperfect reproduction of the 24bit source, so there is no difference between playing 24bit source and 16bit source. COWON processed through intensive research and development period to achieve the best SNR, THD etc. PLENUE R covers from basic specifications to advanced ones offering enhanced enjoyment of listening HD Sound to users.

High SNR CLOSE

Tuning the Physical Limits of Space-Time
JetEffect 7 & BBE+

Speakers, headphones, and earphones tend to delay the high-frequency band more than the low-frequency band, even in original sound sources. When facing these phenomena, JetEffect 7 and BBE+ compensate the physical phase to reproduce vivid original sounds like a live performance and provide optimal HD sound via sophisticated methods and controls.

JetEffect 7 & BBE+ View more

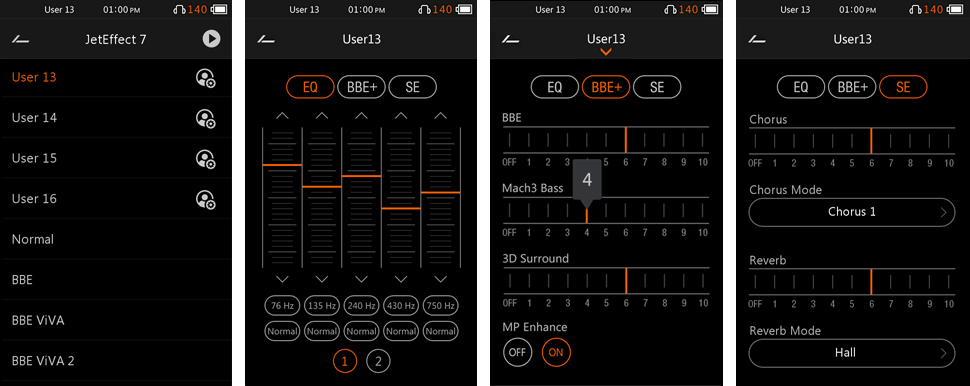

World's Renown Professional Sound Control
JetEffect 7 10 bands EQ Filter and BBE+, Reverb, Chorus, etc. can be controlled in 16 different user's presets and 50 different reference presets. These presets allow a small tone control to suit the preferences of users and correspond to various listening environments. By using BBE+ that contains phase correction function, users can listen to the dense and vivid sound that is close to the original sound. Whatever the environments are, whatever the receivers are, whatever the genre is, JetEffect 7 provides the best High Fidelity sound.

10 Band EQ Filter	Advanced settings to adjust the frequency and width of each band.
BBE	High-definition effects to sharpen sound. (Phase correction)
Mach3Bass	Bass booster to enhance super low-end bass.
3D Surround	Three-dimensional sound for an enhanced sense of space.
MP Enhance	A feature for compensating lost sound segments.

Chorus*	Sound effect that enriches the audio
Reverb*	A reverb effect for enhanced realism
* Chorus Mode	Chorus 1, Chorus 2, Chorus 3, Unison 1, Unison 2, Flange 1, Flange 2, Flange 3
* Reverb Mode	Chamber, Room, Club, Hall, Auditorium, Cathedral, Stadium, Canyon, Long

The Best Choice for
Original Live Sound Reproduction, BBE+ Sound includes a unique high frequency harmonics, and this unique harmonics pattern helps users to distinguish the each instrument. This high frequency harmonics reach our ears earlier than the normal frequency in live sound. Human brain recognizes earlier signal as more important signal, therefore high frequency harmonics is vital component in music. However, like speakers, headphones, and earphones, receivers tend to delay high frequency range rather than low frequency range, resulting in decrease in clarity and reality. Normally, equalizer or tone control is used to increase clarity and reality in sound, however this method cannot remove the delay of high frequency range to reproduce the natural sound. By applying BBE, phase characteristics of lower and middle frequency bands can be delayed comparing to high frequency band, resulting high frequency reaches human ears earlier than any other frequencies to make the same condition as live sound. Also, by gently expressing high and low frequency range, very dense and clear sound can be reproduced.

Real Alive Sound! BBE introduction >>

JetEffect 7 & BBE+ CLOSE

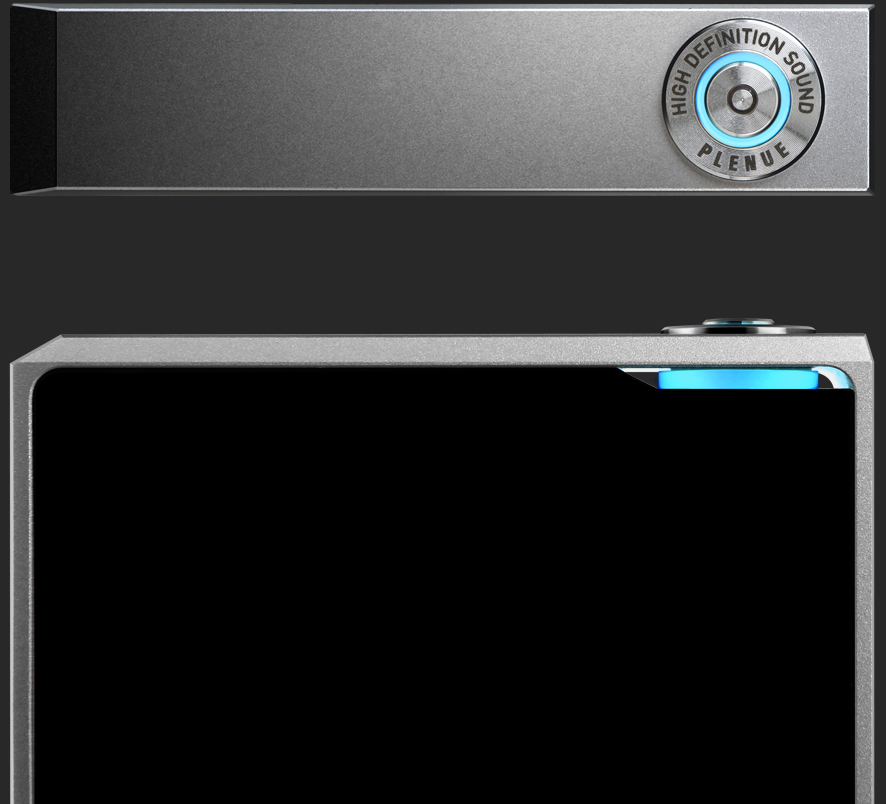

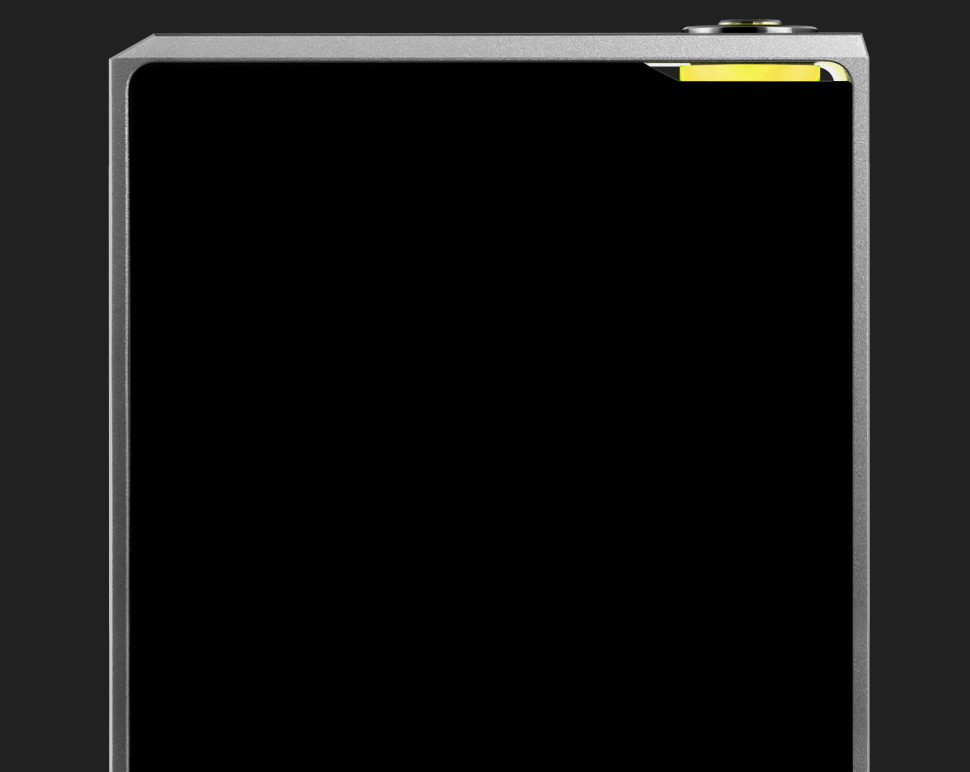

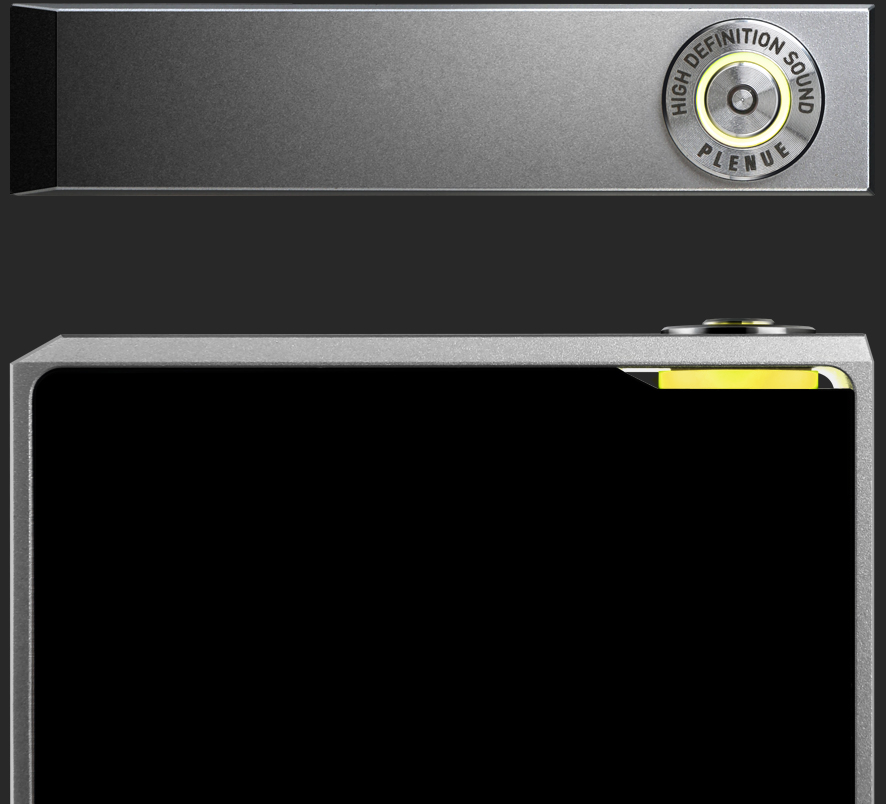

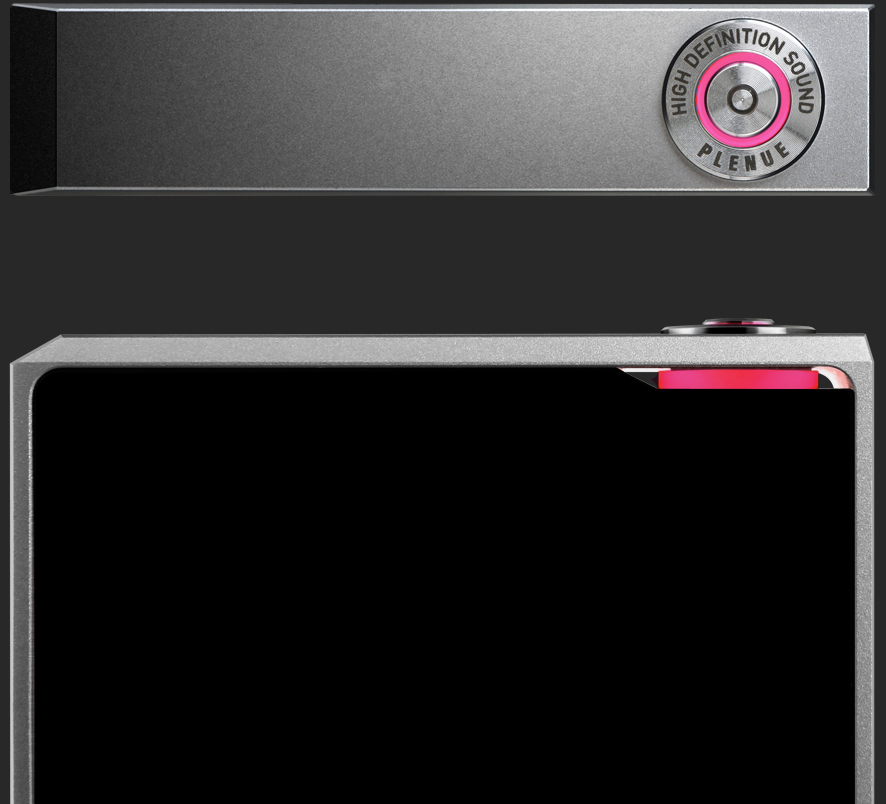

Sound Source LED Indicator Changing its Color According to Sound Source

Normal Sound HD Sound DSD / DXD

Three LED colors shows up depending on sound sources during playback, whether normal, HD, or DSD/DXD. The colorful source-based LEDs enhance your listening pleasure.

Adapted High Precision TCXO
for Reliable HD Sound

Sampling rate can be fluctuated depending on the temperature and environments of device. To minimize the difference in sampling, TCXO (Temperature Compensated Crystal Oscillator) is adapted. Having exceptional Phase Jitter of 1.0ps, PLENUE R can perform flawlessly in any circumstances.

PLENUE R Technology for Overwhelming Performance

HD Sound & CUE, ISO

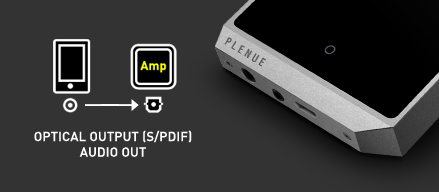

Optical Output (S/PDIF)
AUDIO OUT
USB DAC
Dual Core CPU
128GB Memory
&
microSD Card Slot

Supports Various PCM Codec and DSD128

PLENUE R supports various audio formats. For example, 24bit/192kHz lossless∙uncompressed format such as AIFF and lossless∙compressed formats such as FLAC, APE, WAV, MP3, WA, TTA, etc. Also, the device supports DXD(352.8/384kHz) and DSD128 (5.64MHz) format to offer wide range of high quality sound formats.
Implemented Superior Analogue Components
and Outstanding Output Power & Optical Terminal

PLENUE R adapted luxurious OP AMP, high performance capacitor, high precision resistance, etc., to be able to support high end headphones and earphones perfectly. Covers high impedance headphones without separate headphone amplifier. Also the player supports an optical OUT to provide lossless output data with wider variety of devices and receivers.
* Maximize volume in earphone mode to use earphone audio output as LINE-OUT.

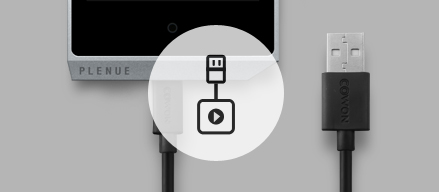

Enhancing Your PC Sound with USB DAC

PLENUE R supports USB DAC Function to enable clean and sharp PC Sound. PLENUE R can be connected with PC via USB Cable and works an external DAC. Enjoy PLENUE R's evolutionary HD Sound on PC.
* 16bit, 44.1 to 192 kHz and 24bit, 44.1 to 96 kHz output is supported when using
   the USB DAC feature. Playback may be interrupted depending on your
   computer's data throughput capacity.
* Recommended OS environment is Windows 7/8 /10, in Windows XP and
   earlier versions that may not work.

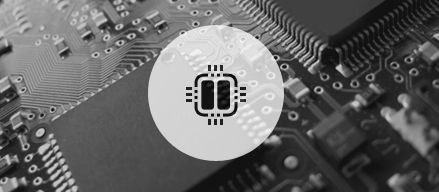

Fast Dual Core CPU

PLENUE R offers more fast and reliable system by implementing dual core CPU and optimizing the software. Cortex A9 1.2GHz dual core CPU, used in various smart device, is equipped in the device to maximize the booting speed and performance, to operate high definition GUI and to play the large volume sound source without any load.

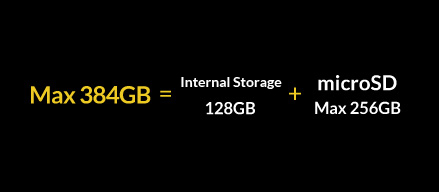

128GB High-Speed Internal Storage
and External microSD Card Slot

Generally a 24bit PCM, DXD, or DSD sound source takes a memory of over 200MB per song. The PLENUE R includes 128GB of high-speed internal storage with support for up to 256GB of expanded storage via microSD card slot.

140 Level
Volume Control
Embedded Linux
3.7" AMOLED Touch Display
&
GUI
Control Button
&
Multi Button
Lyric Format

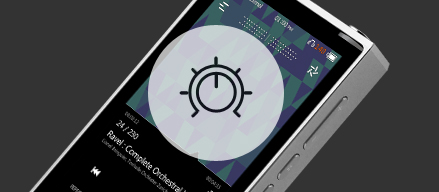

140 Levels of Detailed Volume Control

PLENUE R provides 140 levels of volume control. By holding the button, level of volume changes quickly. Fine volume adjustment is possible to change 0.5dB per one level, therefore you can enjoy the music at an optimum level.
Embedded Linux for Perfect Sound

PLENUE R chose audio friendly Embedded Linux system to accomplish the perfect high quality HD Sound. COWON's Embedded Linux is proved in many audio devices over the decades. Therefore hardware is highly optimized by using the Linux system, this optimization allows the device to provide stable high quality sound system.

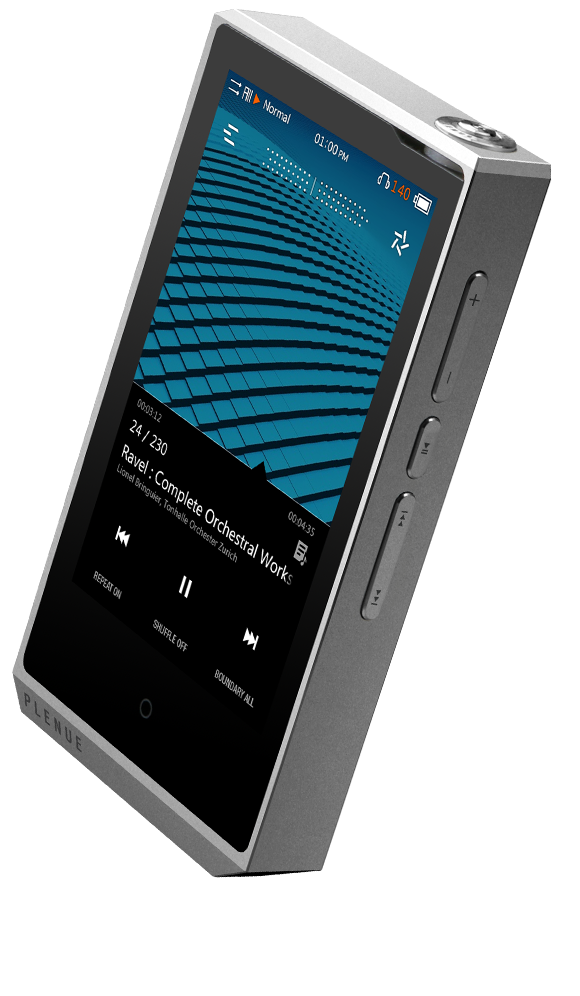

Intuitive GUI
+ 3.7" AMOLED Touch Display

PLENUE R comes with a full touch screen, 3.7" AMOLED Display, and an intuitive control GUI to maximize the convenience. Touch & Drag Browsing and Equalizer setting is designed to operate with touching the display only. In addition, various playing functions are provided with physical buttons to offer the maximum comfort to users.

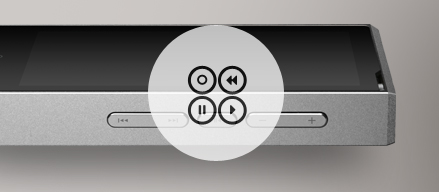

Effortless Button Control,
Convenient Multi Button

The home multi button allows quick access to playback, playlist, and settings screens. Designed to deliver the utmost convenience in a portable Hi-Fi player, the PLENUE R features physical buttons for power, volume, playback, and search so operation is easy and positive, even when in a pocket.

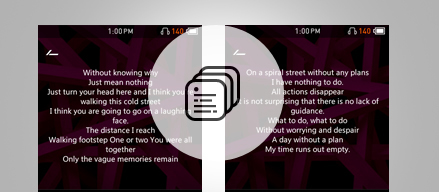

Supports 5 Different Lyrics Formats

Listening to music will be even more fun with support of lyrics format that incorporates a variety of information. Various information of music can be checked by 5 different lyrics formats such as LRC, LDB, Lyrics3, ID3 Tag lyrics (time information available).

Gapless
&
Remove Silence
Multi-Favorite
&
Search
Stereo Level Meter

Gapless & Remove Silence

PLENUE R supports Gapless and Remove Silence functions to minimize the waiting time between the tracks. Gapless removes the gap between the tracks and is applied in all situations without any special settings. In addition, Remove Silence removes up to 500ms of silence end track and the start of the track.

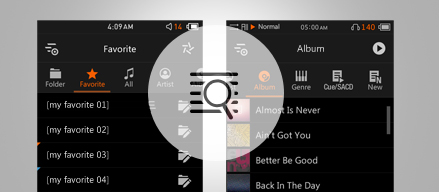

Multi-Favorite & Searching

Multi-Favorite offers the convenience of saving your favorite music in multiple playlists, which allows creating more diverse music lists depending on users' tastes. Even with a large number of music files, users can easily find and listen to the music that they want, by using the keyboard in Searching function.
Digital and Analog in Harmony

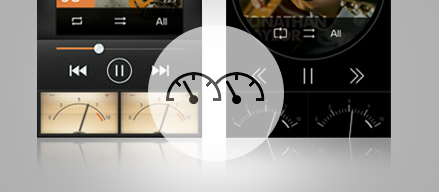

Stereo Level Meter

2Ch Level Meter shows the constantly changing stereo output to express the feel of both digital and analogue. The level meter that moves dynamically with music adds another pleasure to your listening experience.

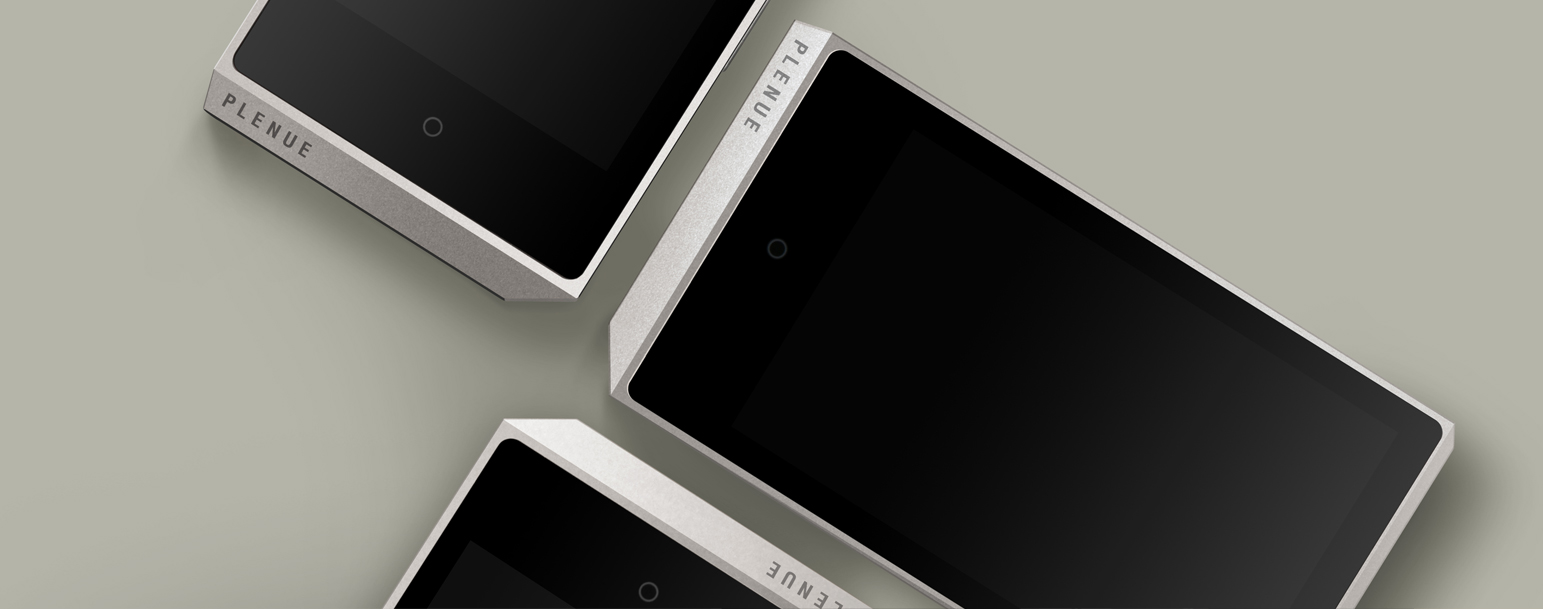

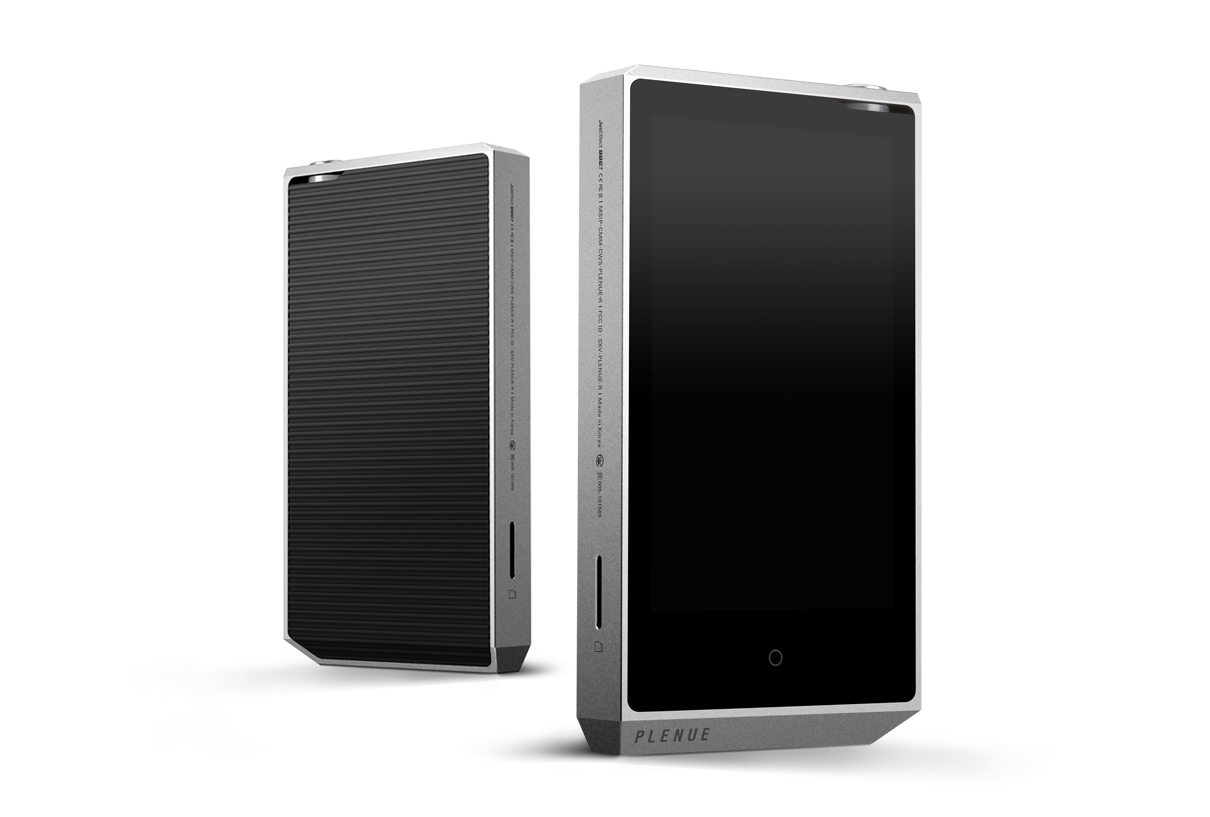

Contrast between Structure and Space
Solid & Void Design

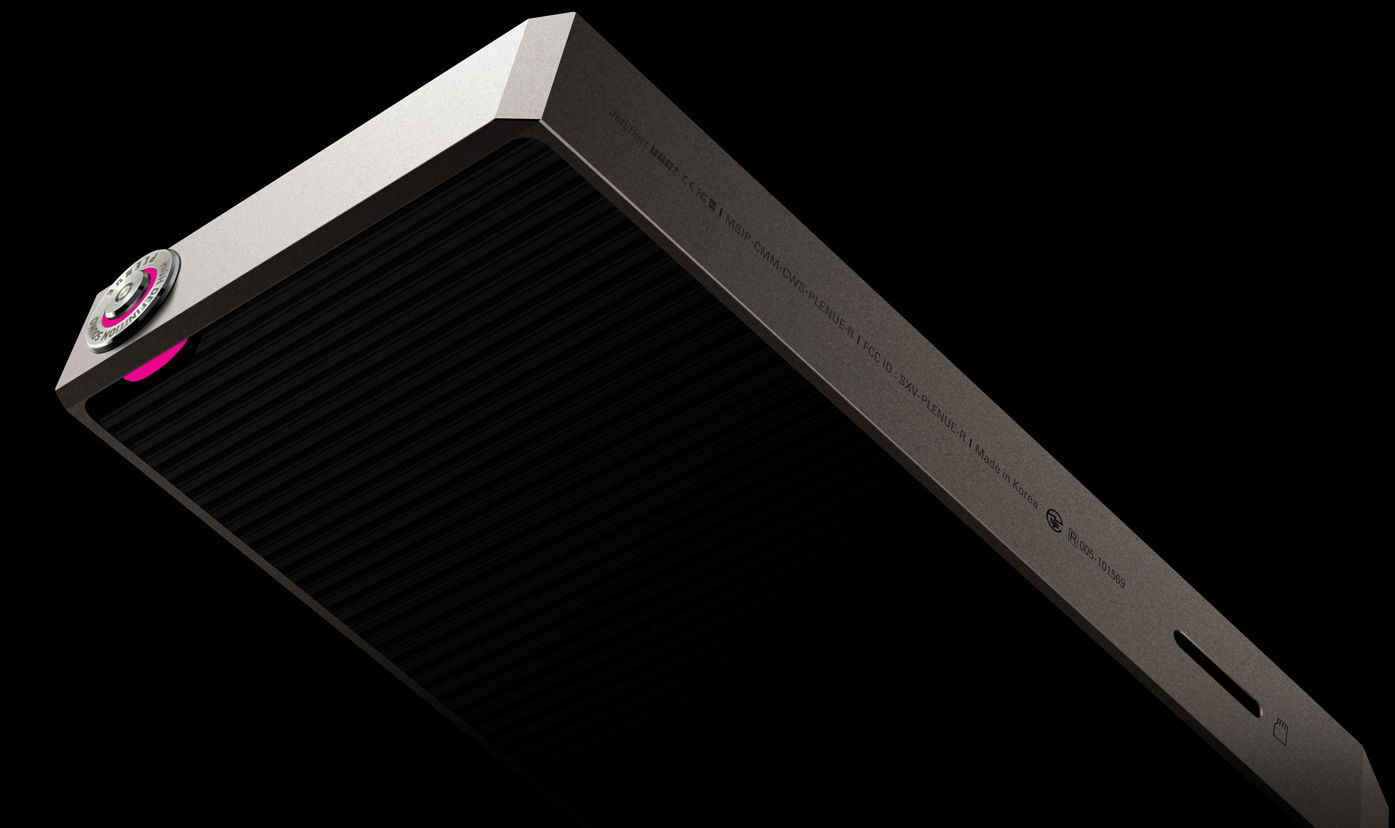

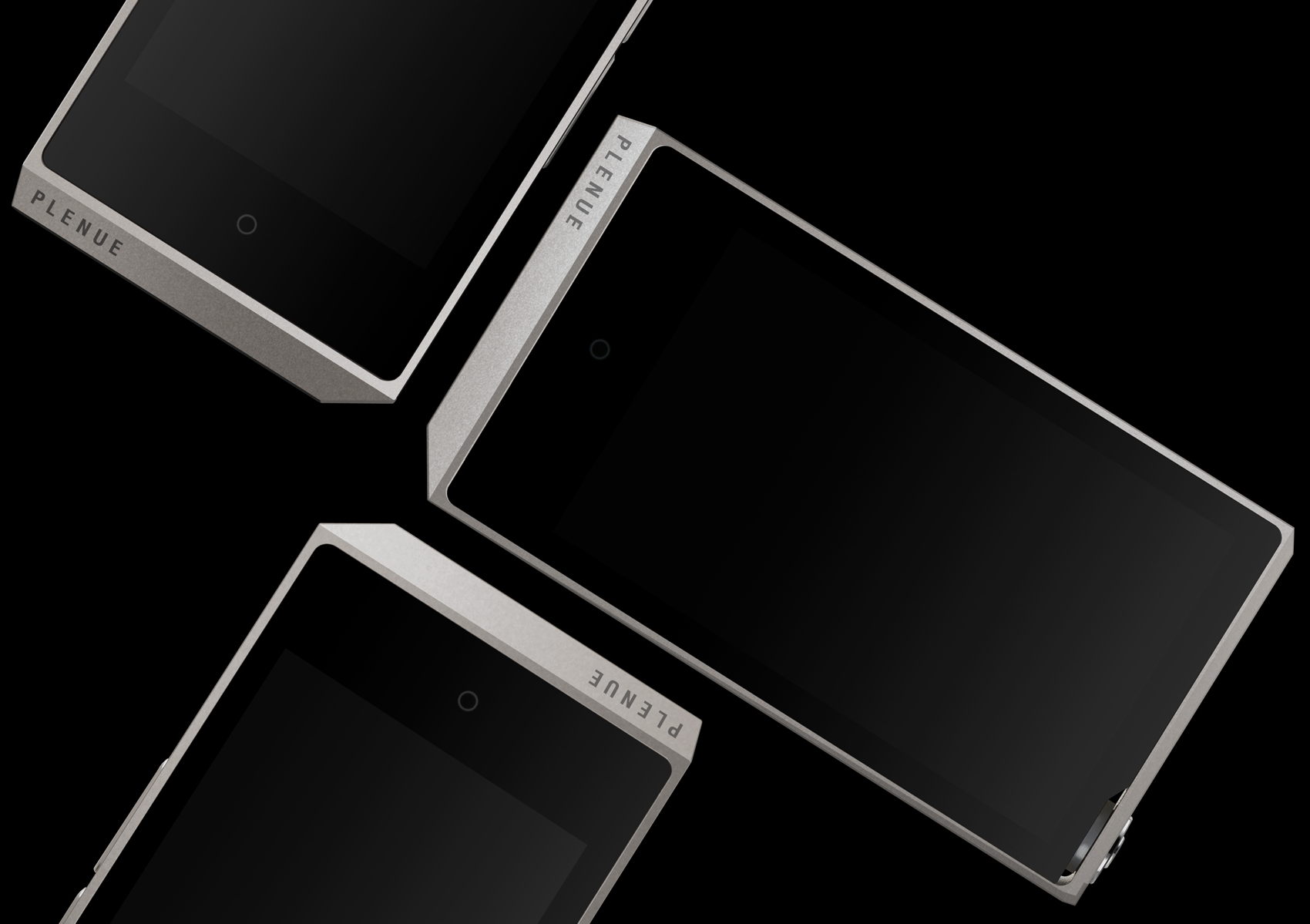

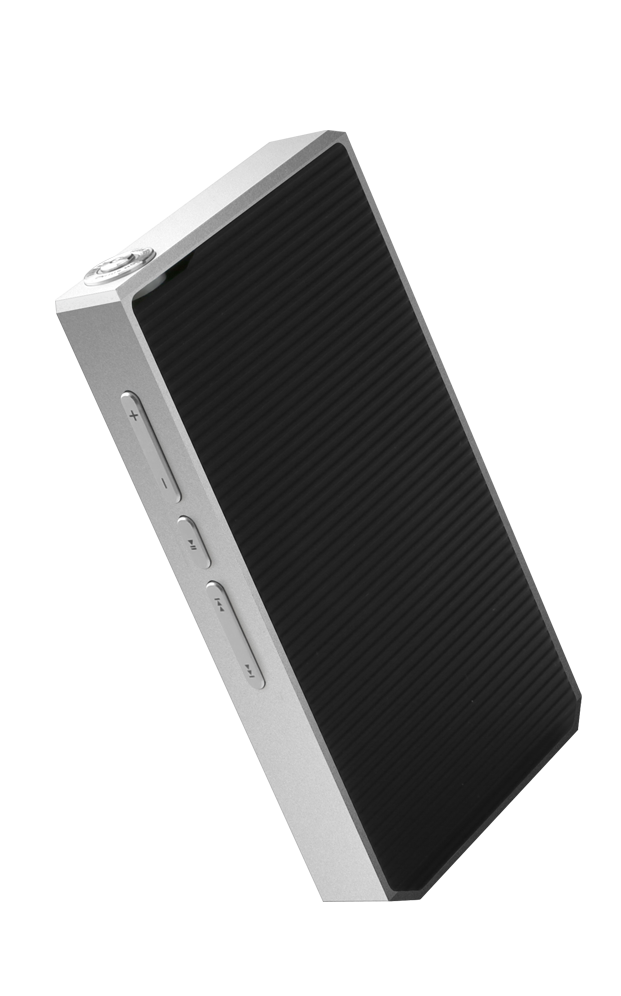

The robustly-designed solid body, precision-machined from high-strength aluminum, and exquisitely-placed negative space surrounding the LED column capture the beauty in contrast between structure and space.

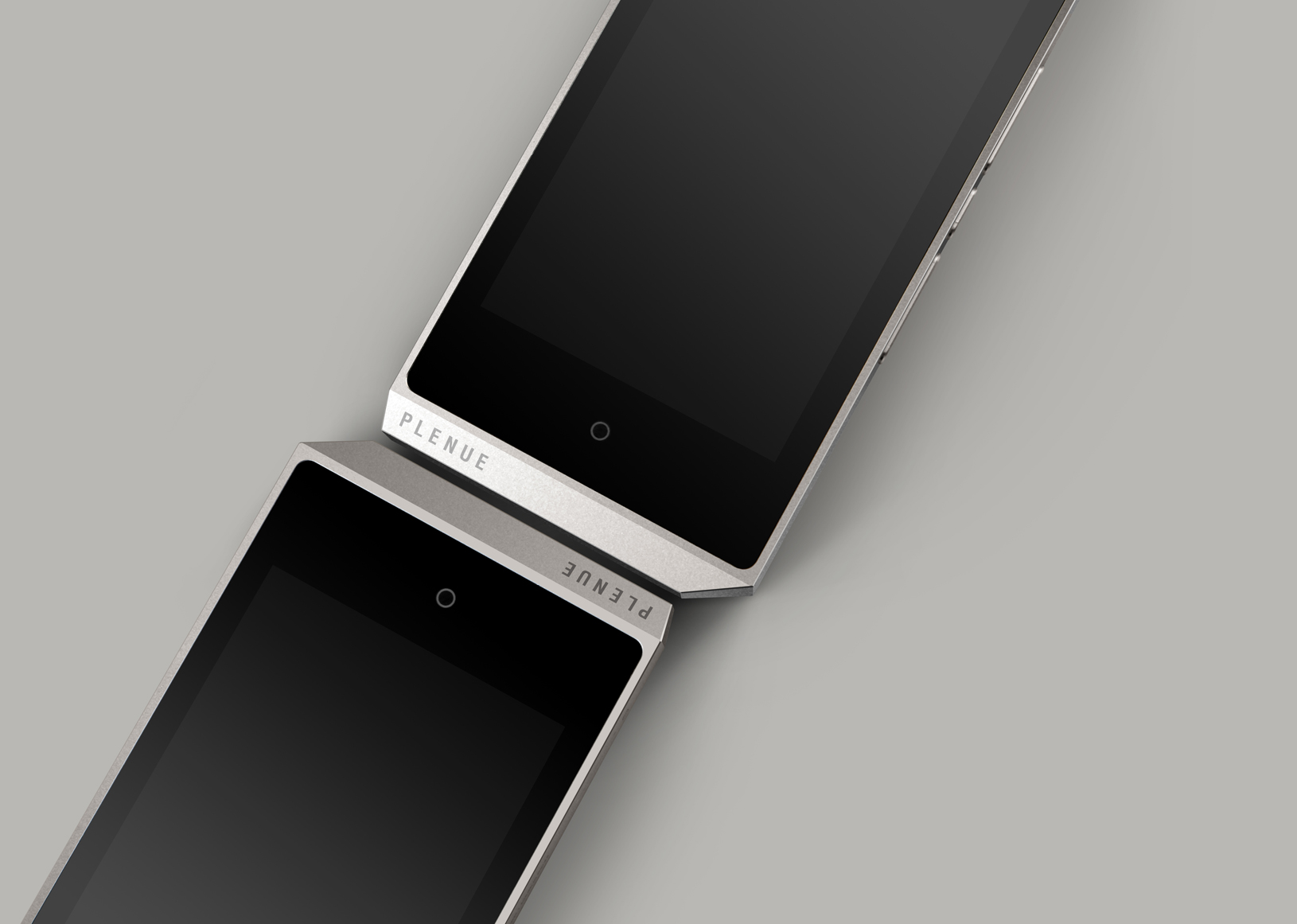

Solid & Void Motif Captured
in a High-Strength Metal Body

PLENUE's new design identity, the "Solid & Void" motif, is emphasized throughout, and the multi-angle cuts in the corners reveal its modern charisma from every viewing angle. The finely-finished diamond-cut side buttons add a quality of luxury to the CNC-machined and anodized high-strength metal body.

Creating Beauty through Color

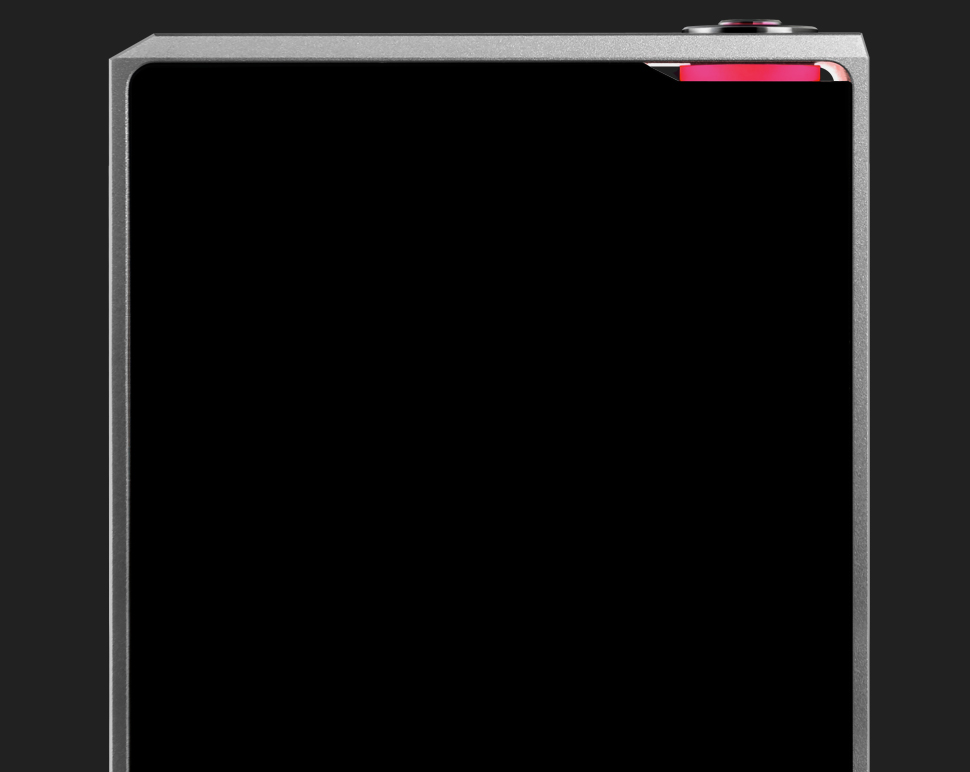

Sound Source LED Indicator

The PLENUE R's beauty shines through light. Different LED colors for each sound source allow listeners to visually identify normal, HD, or DSD/DXD playback.

Normal Sound

HD Sound

DSD / DXD

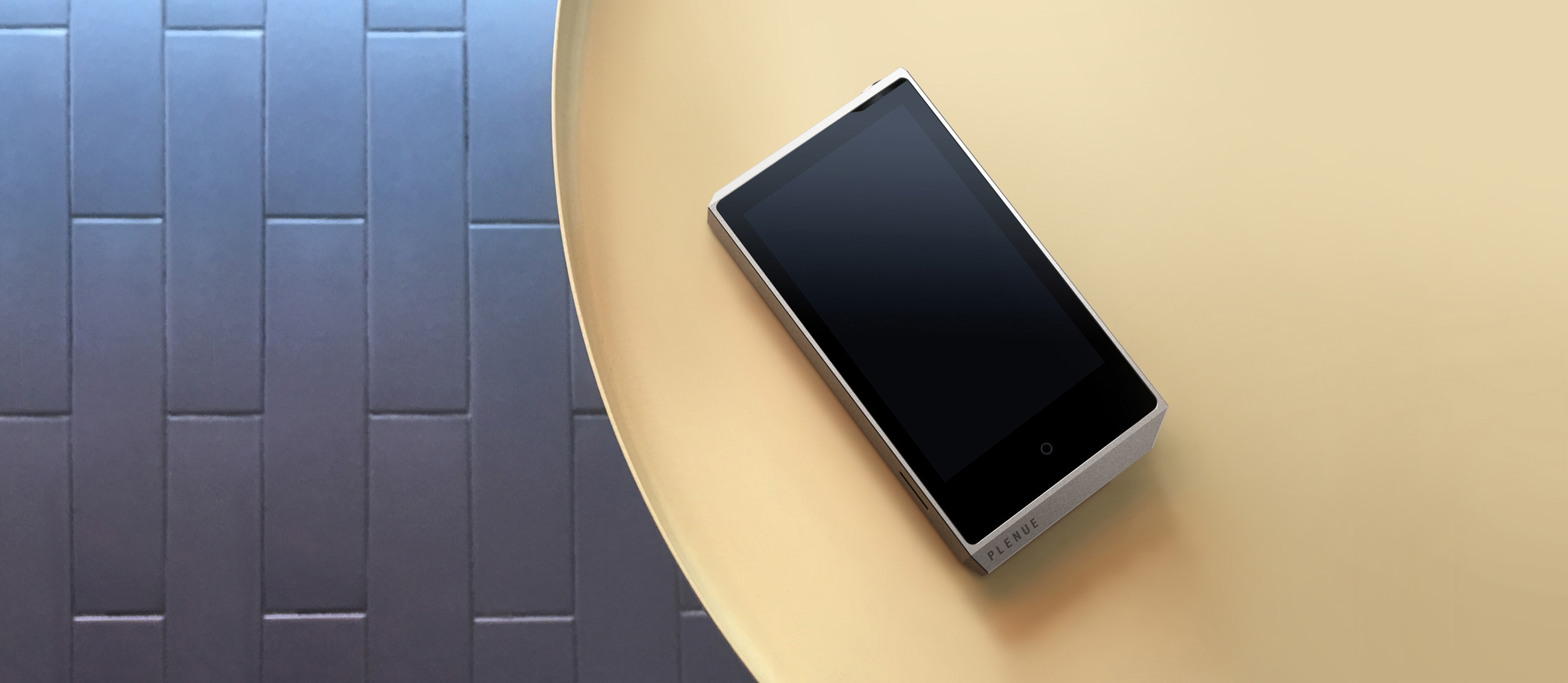

Polaris Silver with Beautiful Stars

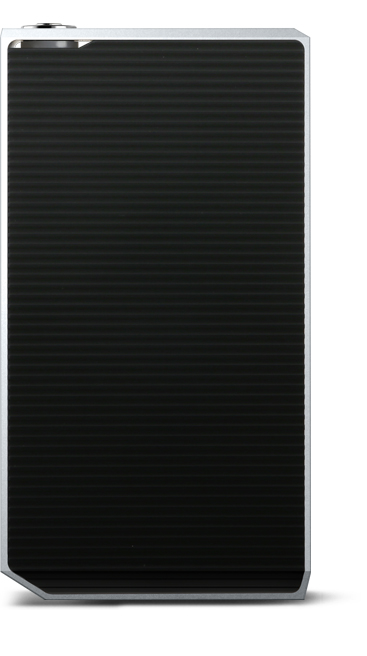

Polaris silver cover and black rear are combined to be in perfect harmony on the PLENUE R. The exquisite mix of rugged metal and soft-touch materials accentuate the PLENUE R's modern sensibility.

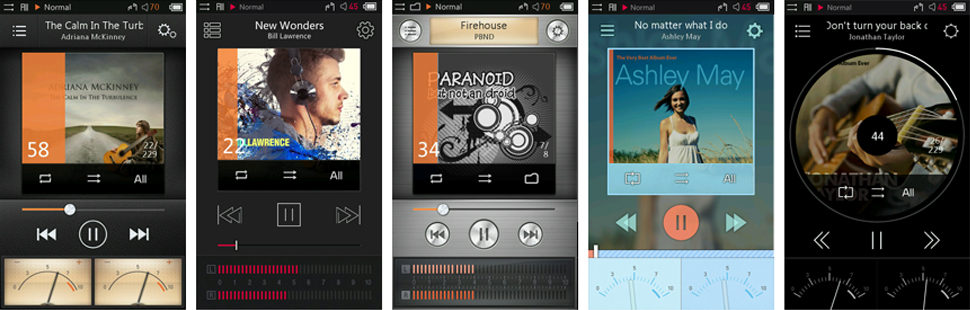

Newly-Designed GUI

High-resolution album art, matrix browser, six sophisticated player skins, and three level meter skins all combine to provide unparalleled visual satisfaction. In addition, A variety of GUIs can be created through a UCI environment that allows users to customize their own interface layouts.

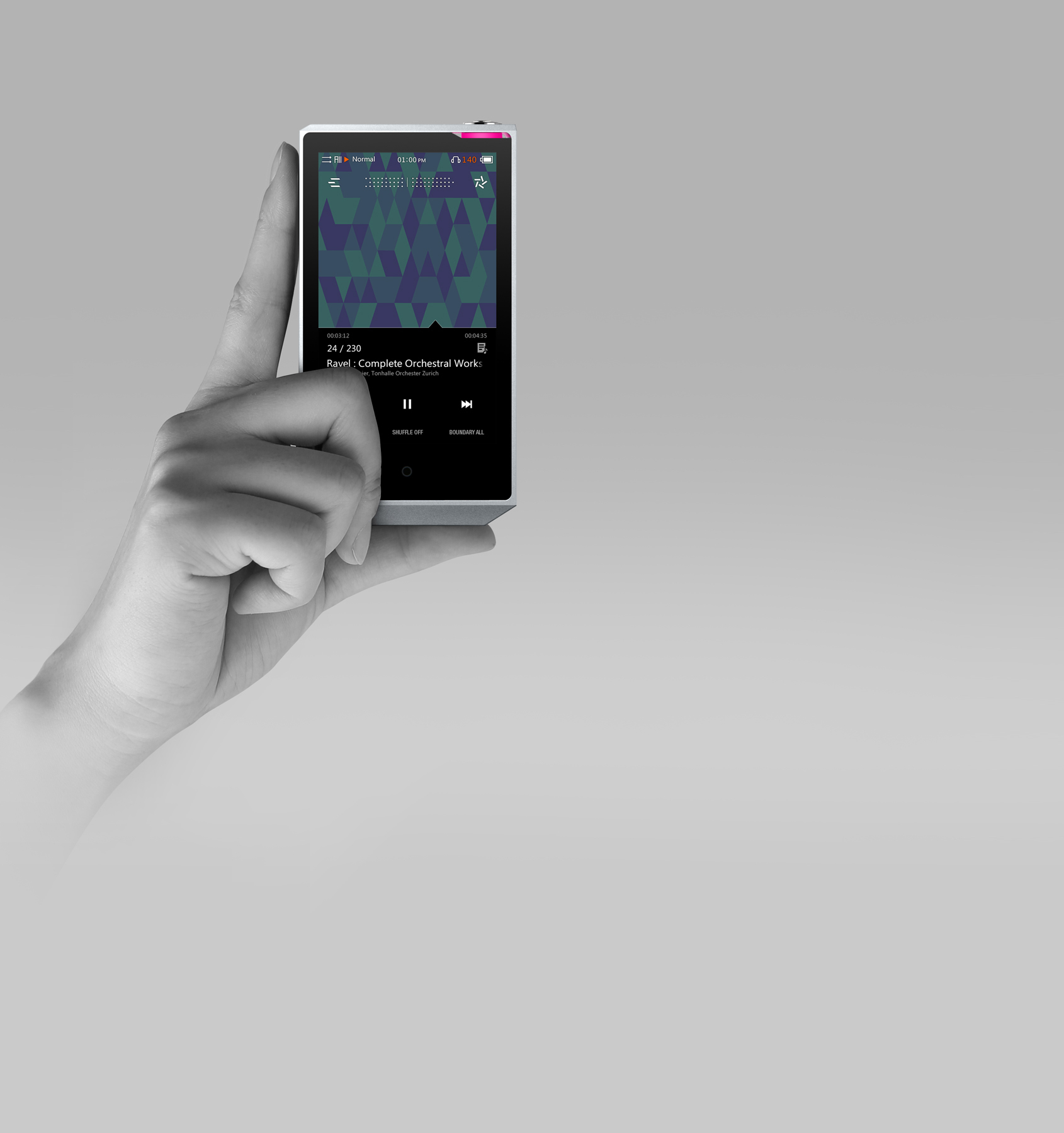

Conveying Emotion through Album Art

Stimulating patterns and images have been reborn as album art.
Twenty works of art are included as album covers to heighten your music-listening experience.

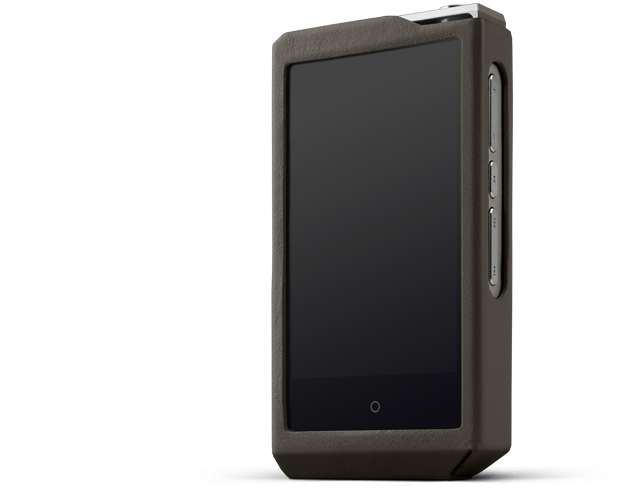

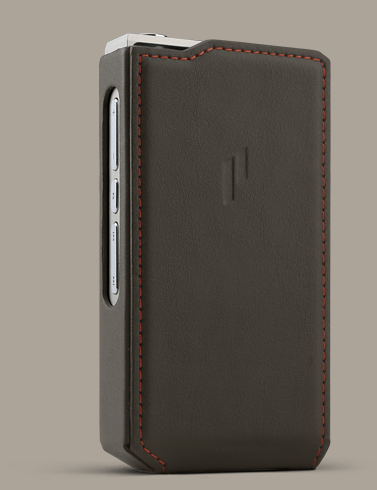

Delicately-Crafted Leather Case

The PLENUE R's leather case is brown and orange string is stitched as a design point, which gives a premium image to it. Each corner is finely finished to highlight the angles in the design and level of perfection.

* Leather case sold separately.
